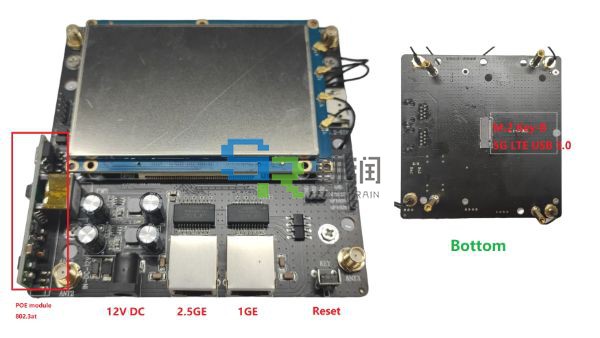

SR7221C/IPQ5018QCN6102QCA8081 2.5GE1GE Wi-Fi6 AX3000
1. Introduction

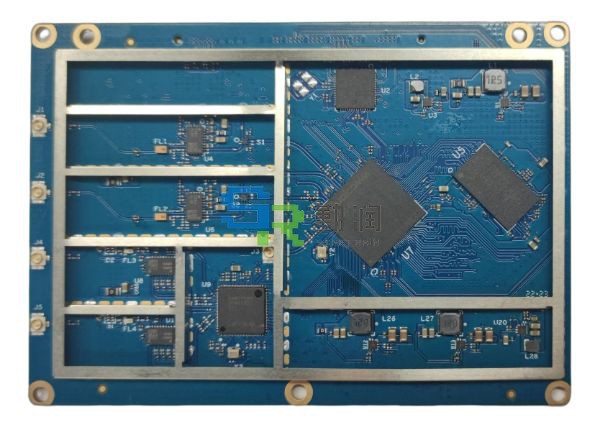

The module SR7221C is a complete, smallform factor 802.11 a/b/g/n/ac/ax Wi-Fi6 Solution optimized for low power,low-cost, and highly integrated AP and consumer electronic devices, the module integratesall Wi-Fi functionality in a package friendly to low-cost PCB design.

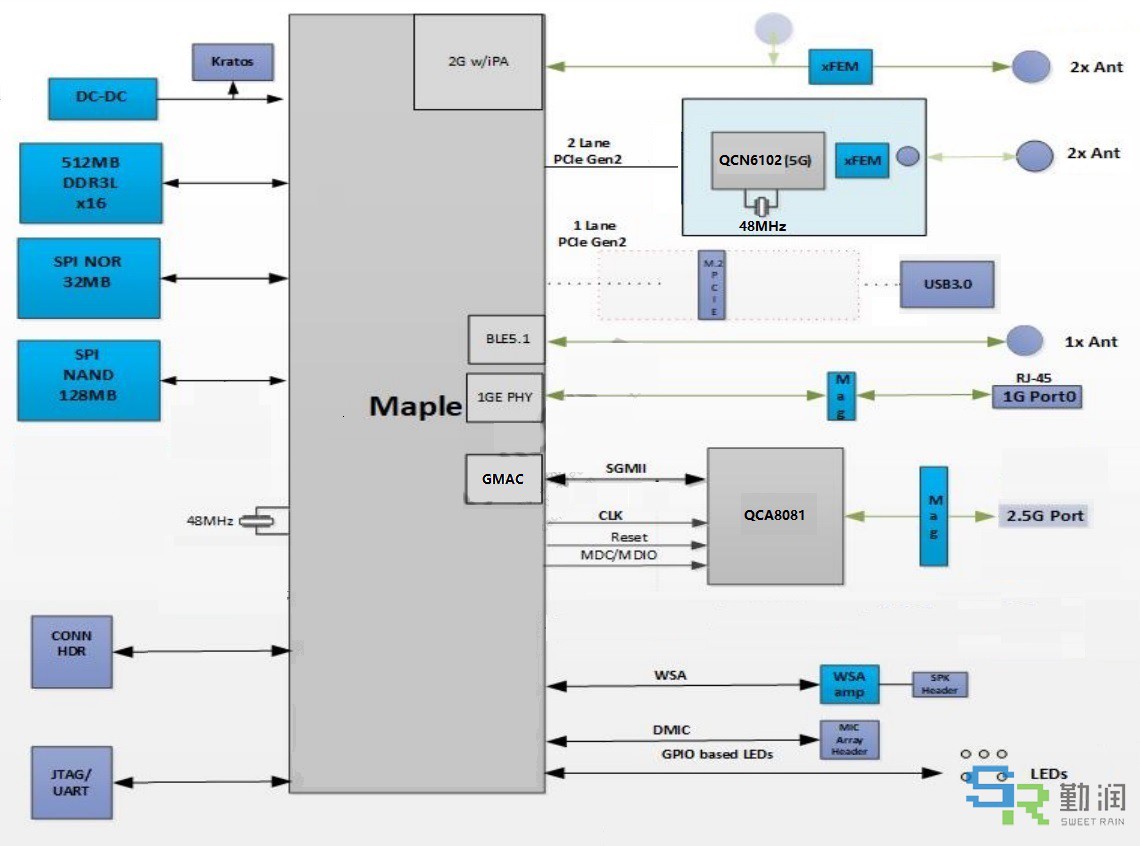

The module based on the single chip IPQ5018which integrates dual-core ARM Cortex-A53 1GHz CPU and dual band 802.11a/b/g/n/ac/ax2x2 MIMO MAC/BB/ radio with external FEM. It supports 802.11 ax operations upto 3000 Mbps for 160MHz.
2. Features
Ø Qualcomm Atheros IPQ5018 Dual-core ARM 64bitA53 1.0GHz Processor.
Ø 2x2 on-board 2.4GHz radio, up to 1200Mbpsphysical data rate
Ø 2x2 on-board 5GHz radio, up to 1800Mbpsphysical data rate
Ø Supports Dynamic Frequency Selection (DFS)
Ø DDR3 memory up to 4 GB.
Ø NAND Flash memory up to 256MB.
Ø 2.5Gbps*1+1Gbps*1 Ethernet Port.
Ø High-speed Mini PCIe v2.0 support.
Ø USB 2.0/3.0 support.
Ø BT5.1 support.
Ø Uart/GPIO/LED support.
