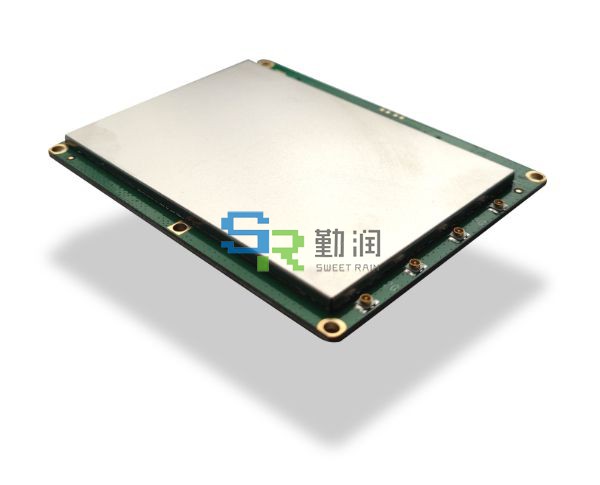

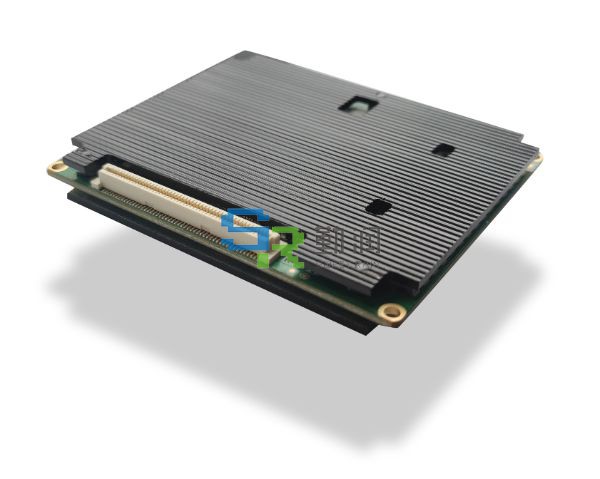

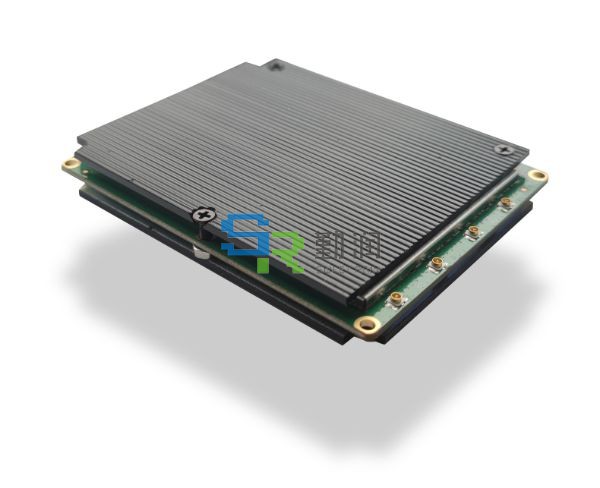

SR7220C-Wi-Fi6/ IPQ6000

The module SR7220Cis a complete, small form factor 802.11 a/b/g/n/ac/ax Wi-Fi6 Solution optimizedfor low power, low-cost, and highly integrated AP and consumer electronicdevices, the module integrates all Wi-Fi functionality in a package friendly tolow-cost PCB design.

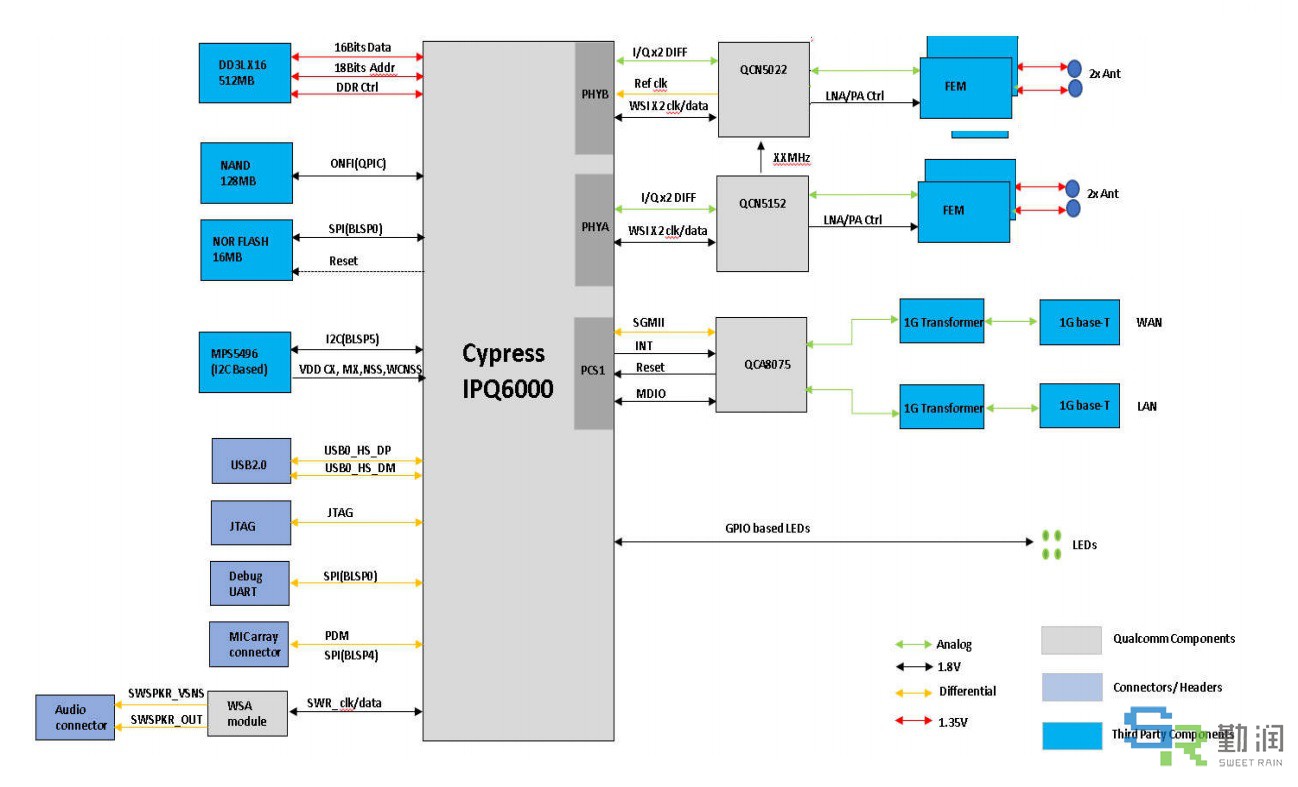

The modulebased on the single chip IPQ6000 which integrates quad-core ARM Cortex-A53 1.2GHzCPU and dual band 802.11a/b/g/n/ac/ax 2x2 MIMO MAC/BB/ radio with external FEM.It supports 802.11 ax operations up to 1700 Mbps for 80MHz.

立即购买

产品详情技术参数

1. Features

Ø Qualcomm Atheros IPQ6000 Quad-core ARM 64bitA53 1.2GHz Processor.

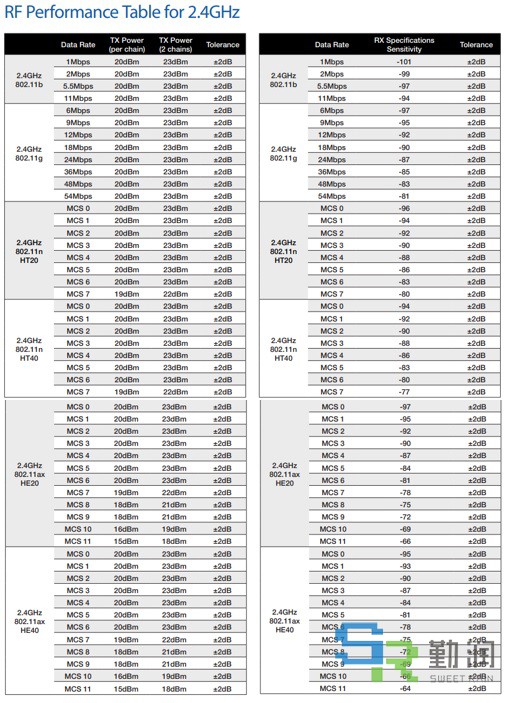

Ø 2x2 on-board 2.4GHz radio, up to 573Mbpsphysical data rate

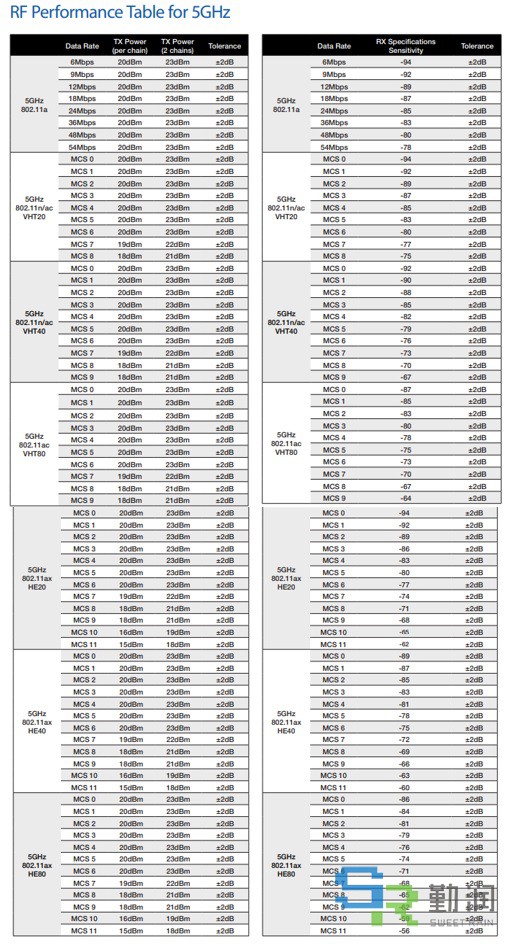

Ø 2x2 on-board 5GHz radio, up to 1201Mbpsphysical data rate

Ø Supports Dynamic Frequency Selection (DFS)

Ø DDR3 memory up to 3 GB.

Ø SPI NOR Flash memory up to 256 Mb(32MB).

Ø NAND Flash memory up to 256MB.

Ø 1Gbps*3 Ethernet Port.

Ø High-speed Mini PCIe v2.0 support.
