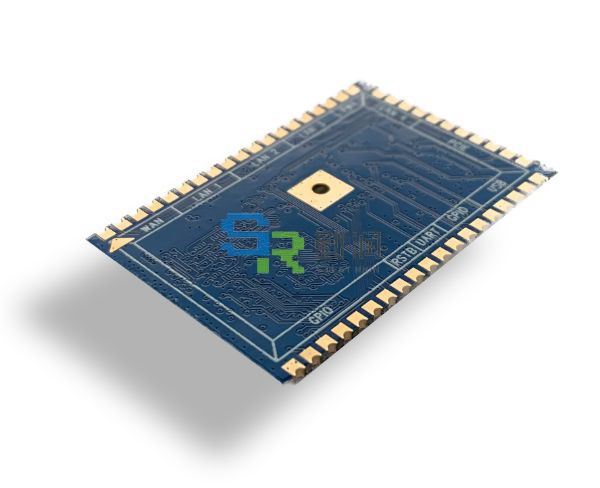

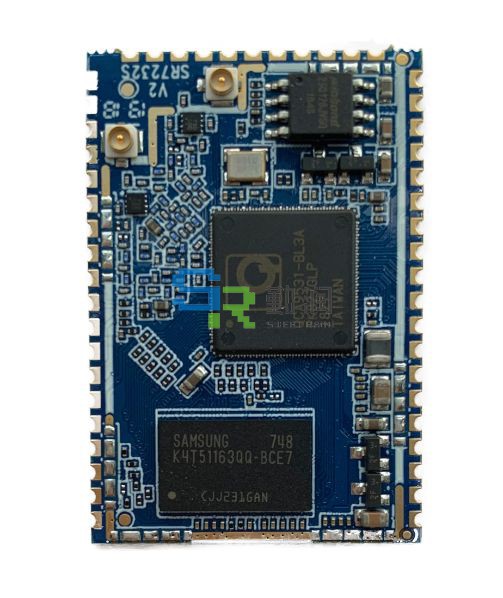

SR7232S/ 2T2R/ 2.4GHz AP/ PCIe

Line

The module SR7232S is a complete, small form factor 802.11 b/g/n Wi-Fi Solution optimized for low power, low-cost, and highly integrated AP and consumer electronic devices, the module integrates all Wi-Fi functionality in a package friendly to low-cost PCB design, requiring only a few external 3.3V and connection to antenna.

The module based on the single chip QCA9531 which integrates an 802.11n 2x2 MIMO MAC/BB/ radio with internal PA and LNA. It supports 802.11 n operations up to 150 Mbps for 20MHZ and 300 Mbps for 40MHZ, and 802.11b/g data rates.

The module support AP mode and client mode at the same time and include mass service application software to reduce there search and design work of customer.

产品详情技术参数

1. Features

Ø The MIPS R24k supports 64KByte I-Cache and32Kbyte D-Cache, targeted to operate at up to 550MHz.

Ø DD2 memory up to 1 Gb.

Ø SPI NOR Flash memory up to 256 Mb.

Ø 4 LAN ports and 1 WAN port.

Ø PCI Express Root complex

Ø High-speed UART for console support.

Ø USB 2.0 host/device mode support.

Ø GPIO/LED support.

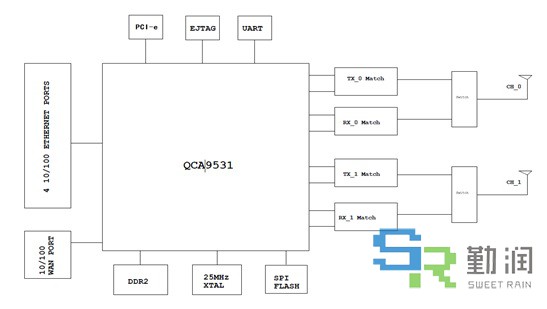

2. Block Diagram

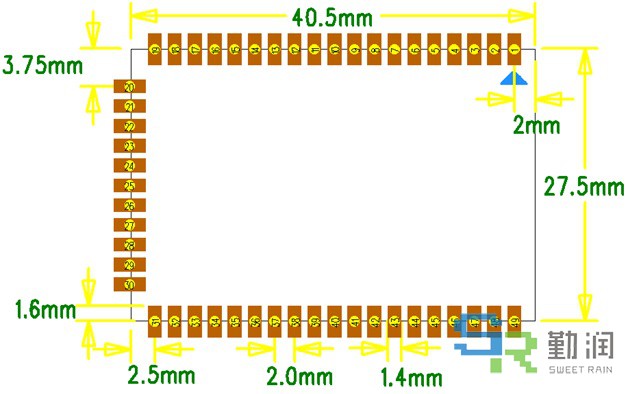

3. Physical Dimensions

RF Specification

4.1 IEEE 802.11b

Feature	Description
WLAN Standard	IEEE 802.11b, Wi-Fi Compliant
Number of Channels	CH1~CH13 (DSSS/CCK)
Output Power	802.11b@1Mbps: 18dBm ± 1.5dB@EVM ≤ -10dB
	802.11b@2Mbps: 18dBm ± 1.5dB@EVM ≤ -10dB
	802.11b@5.5Mbps: 18dBm ± 1.5dB@EVM ≤ -10dB
	802.11b@11Mbps: 18dBm ± 1.5dB@EVM ≤ -10dB
Receive Sensitivity (PER ≤ 8%)	802.11b@1Mbps: PER @ -93dBm, Typical
	802.11b@2Mbps: PER @ -93dBm, Typical
	802.11b@5.5Mbps: PER @ -91dBm, Typical
	802.11b@11Mbps: PER @ -86dBm, Typical l

4.2 IEEE 802.11g

Feature	Description
WLAN Standard	IEEE 802.11g, Wi-Fi Compliant
Number of Channels	CH1~CH13 (OFDM)
Output Power	802.11g@6Mbps: 17dBm ± 1.5dB@EVM ≤ -5dB
	802.11g@9Mbps: 17dBm ± 1.5dB@EVM ≤ -8dB
	802.11g@12Mbps: 17dBm ± 1.5dB@EVM ≤ -10dB
	802.11g@18Mbps: 17dBm ± 1.5dB@EVM ≤ -13dB
	802.11g@24Mbps: 17dBm ± 1.5dB@EVM ≤ -16dB
	802.11g@36Mbps: 16dBm ± 1.5dB@EVM ≤ -19dB
	802.11g@48Mbps: 14dBm ± 1.5dB@EVM ≤ -22dB
	802.11g@54Mbps: 14dBm ± 1.5dB@EVM ≤ -25dB
Receive Sensitivity (PER ≤ 10%)	802.11g@6Mbps: PER @ -90dBm, Typical
	802.11g@9Mbps: PER @ -89dBm, Typical
	802.11g@12Mbps: PER @ -88dBm, Typical
	802.11g@18Mbps: PER @ -87dBm, Typical
	802.11g@24Mbps: PER @ -86dBm, Typical
	802.11g@36Mbps: PER @ -83dBm, Typical
	802.11g@48Mbps: PER @ -75dBm, Typical
	802.11g@54Mbps: PER @ -72dBm, Typical

4.3 IEEE 802.11n (HT20)

Feature	Description
WLAN Standard	IEEE 802.11n HT20, Wi-Fi Compliant
Number of Channels	CH1~CH13 (OFDM)
Output Power	802.11n@MCS0: 17dBm ± 1.5dB@EVM ≤ -5dB
	802.11n@MCS1: 17dBm ± 1.5dB@EVM ≤ -10dB
	802.11n@MCS2: 17dBm ± 1.5dB@EVM ≤ -13dB
	802.11n@MCS3: 17dBm ± 1.5dB@EVM ≤ -16dB
	802.11n@MCS4: 16dBm ± 1.5dB@EVM ≤ -19dB
	802.11n@MCS5: 15dBm ± 1.5dB@EVM ≤ -22dB
	802.11n@MCS6: 14dBm ± 1.5dB@EVM ≤ -25dB
	802.11n@MCS7: 14dBm ± 1.5dB@EVM ≤ -27dB
Receive Sensitivity (PER ≤ 10%)	802.11n@MCS0: PER @ -90dBm, Typical
	802.11n@MCS1: PER @ -88dBm, Typical
	802.11n@MCS2: PER @ -86dBm, Typical
	802.11n@MCS3: PER @ -82dBm, Typical
	802.11n@MCS4: PER @ -79dBm, Typical
	802.11n@MCS5: PER @ -75dBm, Typical
	802.11n@MCS6: PER @ -73dBm, Typical
	802.11n@MCS7: PER @ -70dBm, Typical

4.4 IEEE 802.11n (HT40)

Feature	Description
WLAN Standard	IEEE 802.11n HT40, Wi-Fi Compliant
Number of Channels	CH3~CH11 (OFDM)
Output Power	802.11n@MCS0: 16dBm ± 1.5dB@EVM ≤ -5dB
	802.11n@MCS1: 16dBm ± 1.5dB@EVM ≤ -10dB
	802.11n@MCS2: 16dBm ± 1.5dB@EVM ≤ -13dB
	802.11n@MCS3: 16dBm ± 1.5dB@EVM ≤ -16dB
	802.11n@MCS4: 15dBm ± 1.5dB@EVM ≤ -19dB
	802.11n@MCS5: 14dBm ± 1.5dB@EVM ≤ -22dB
	802.11n@MCS6: 13dBm ± 1.5dB@EVM ≤ -25dB
	802.11n@MCS7: 13dBm ± 1.5dB@EVM ≤ -27dB
Receive Sensitivity (PER ≤ 10%)	802.11n@MCS0: PER @ -88dBm, Typical
	802.11n@MCS1: PER @ -85dBm, Typical
	802.11n@MCS2: PER @ -83dBm, Typical
	802.11n@MCS3: PER @ -80dBm, Typical
	802.11n@MCS4: PER @ -75dBm, Typical
	802.11n@MCS5: PER @ -72dBm, Typical
	802.11n@MCS6: PER @ -70dBm, Typical
	802.11n@MCS7: PER @ -68dBm, Typical
