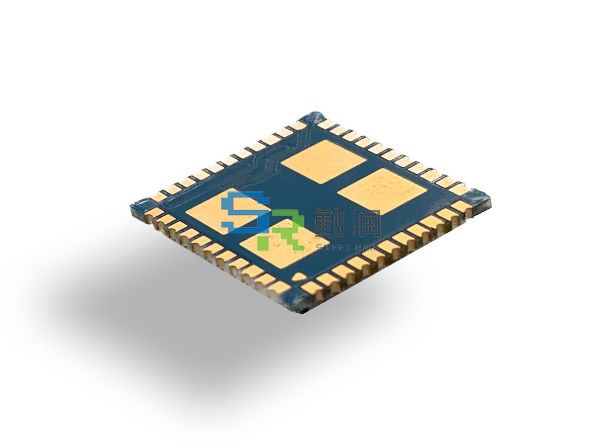

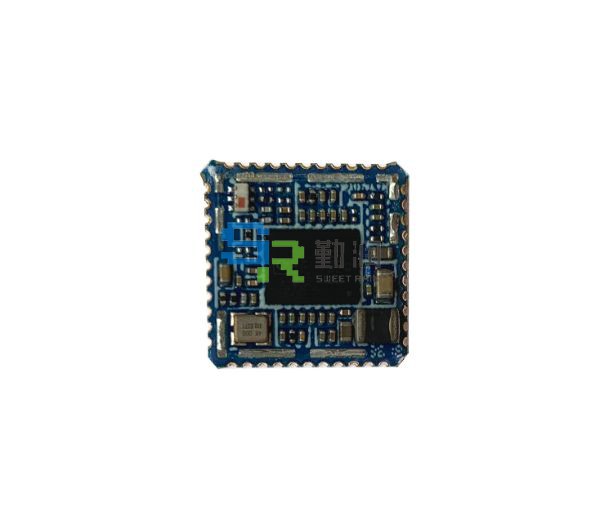

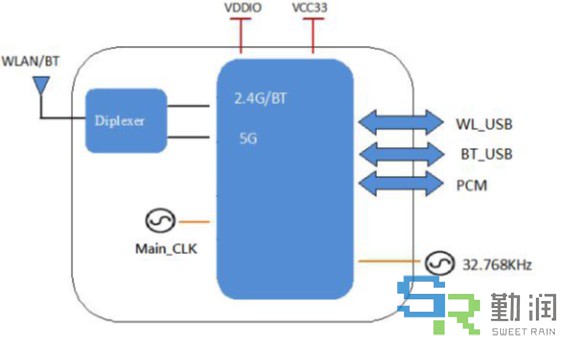

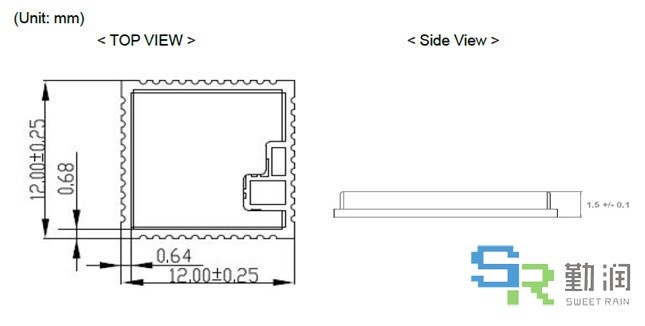

SR5137UA

Feature

Description

WLAN Standard

IEEE 802.11b/g/n/ac, Wi-Fi Compliant

Frequency Range

2.400 GHz ~ 2.497 GHz (2.4 GHz ISM Band)

Number of Channels

2.4GHz：Ch1 ~ Ch14

Output Power

802.11b  /CCK : 16±1.5 dBm @ EVM ≤ -9dB

802.11g /64-QAM(R=3/4) : 15±1.5 dBm @ EVM ≤ -25dB

802.11n /64-QAM(R=5/6) : 14±1.5 dBm @ EVM ≤ -28dB

Receive Sensitivity

(11b PER ≤ 8%)

- 1Mbps PER @ -96 dBm, typical

- 2Mbps PER @ -90 dBm, typical

- 5.5Mbps PER @ -88 dBm, typical

- 11Mbps PER @ -87 dBm, typical

Receive Sensitivity

(11g PER ≤ 10%)

- 6Mbps PER @ -90 dBm, typical

- 9Mbps PER @ -88 dBm, typical

- 12Mbps PER @ -87 dBm, typical

- 18Mbps PER @ -85 dBm, typical

- 24Mbps PER @ -83 dBm, typical

- 36Mbps PER @ -80 dBm, typical

- 48Mbps PER @ -76 dBm, typical

- 54Mbps PER @ -74 dBm, typical

Receive Sensitivity

(11n, 20MHz

PER ≤ 10%)

- MCS=0 PER @ -89 dBm, typical

- MCS=1 PER @ -85 dBm, typical

- MCS=2 PER @ -84 dBm, typical

- MCS=3 PER @ -80 dBm, typical

- MCS=4 PER @ -77 dBm, typical

- MCS=5 PER @ -75 dBm, typical

- MCS=6 PER @ -72 dBm, typical

- MCS=7 PER @ -71 dBm, typical

Receive Sensitivity

(11n, 20MHz

PER ≤ 10%)

- MCS=0 PER @ -89 dBm, typical

- MCS=1 PER @ -85 dBm, typical

- MCS=2 PER @ -84 dBm, typical

- MCS=3 PER @ -80 dBm, typical

- MCS=4 PER @ -76 dBm, typical

- MCS=5 PER @ -72 dBm, typical

- MCS=6 PER @ -70 dBm, typical

- MCS=7 PER @ -69 dBm, typical

Receive Sensitivity

(11ac, 20MHz

PER ≤ 10%)

- MCS=0 PER @ -90 dBm, typical

- MCS=1 PER @ -87 dBm, typical

- MCS=2 PER @ -86 dBm, typical

- MCS=3 PER @ -82 dBm, typical

- MCS=4 PER @ -79 dBm, typical

- MCS=5 PER @ -75 dBm, typical

- MCS=6 PER @ -73 dBm, typical

- MCS=7 PER @ -72 dBm, typical

- MCS=8 PER @ -67 dBm, typical

Receive Sensitivity

(11ac, 40MHz

PER ≤ 10%)

- MCS=0 PER @ -88 dBm, typical

- MCS=1 PER @ -85 dBm, typical

- MCS=2 PER @ -83 dBm, typical

- MCS=3 PER @ -80 dBm, typical

- MCS=4 PER @ -77 dBm, typical

- MCS=5 PER @ -72 dBm, typical

- MCS=6 PER @ -71 dBm, typical

- MCS=7 PER @ -69 dBm, typical

- MCS=8 PER @ -65 dBm, typical

- MCS=9 PER @ -64 dBm, typical

Feature

Description

WLAN Standard

IEEE 802.11a/b/g/n/ac, Wi-Fi Compliant

Frequency Range

4.900 GHz ~ 5.845 GHz (5.0 GHz ISM Band)

Number of Channels

5.0GHz：Please see the table1

Modulation

802.11a/n : 64-QAM,16-QAM, QPSK, BPSK

802.11ac : 256-QAM, 64-QAM,16-QAM, QPSK, BPSK

Output Power

802.11a /64-QAM(R=3/4) : 12±2 dBm @ EVM≤-25dB

802.11n /64-QAM(R=5/6) : 11±2 dBm @ EVM≤-28dB

802.11ac/256-QAM(R=3/4) : 10±2 dBm @ EVM≤-30dB

802.11ac/256-QAM(R=5/6) : 10±2 dBm @ EVM≤-32dB

Receive Sensitivity

(11a, 20MHz

PER ≤ 10%)

- 6Mbps PER @ -91 dBm, typical

- 9Mbps PER @ -89 dBm, typical

- 12Mbps PER @ -88 dBm, typical

- 18Mbps PER @ -86 dBm, typical

- 24Mbps PER @ -82 dBm, typical

- 36Mbps PER @ -79 dBm, typical

- 48Mbps PER @ -74 dBm, typical

- 54Mbps PER @ -73 dBm, typical

Receive Sensitivity

(11n, 20MHz

PER ≤ 10%)

- MCS=0 PER @ -90 dBm, typical

- MCS=1 PER @ -88 dBm, typical

- MCS=2 PER @ -85 dBm, typical

- MCS=3 PER @ -82 dBm, typical

- MCS=4 PER @ -78 dBm, typical

- MCS=5 PER @ -74 dBm, typical

- MCS=6 PER @ -72 dBm, typical

- MCS=7 PER @ -71 dBm, typical

Receive Sensitivity

(11n, 40MHz

PER ≤ 10%)

- MCS=0 PER @ -88 dBm, typical

- MCS=1 PER @ -85 dBm, typical

- MCS=2 PER @ -83 dBm, typical

- MCS=3 PER @ -79 dBm, typical

- MCS=4 PER @ -76 dBm, typical

- MCS=5 PER @ -71 dBm, typical

- MCS=6 PER @ -70 dBm, typical

- MCS=7 PER @ -68 dBm, typical

Receive Sensitivity

(11ac, 20MHz

PER ≤ 10%)

- MCS=0 PER @ -89 dBm, typical

- MCS=1 PER @ -87 dBm, typical

- MCS=2 PER @ -84 dBm, typical

- MCS=3 PER @ -81 dBm, typical

- MCS=4 PER @ -77 dBm, typical

- MCS=5 PER @ -73 dBm, typical

- MCS=6 PER @ -71 dBm, typical

- MCS=7 PER @ -70 dBm, typical

- MCS=8 PER @ -66 dBm, typical

Receive Sensitivity

(11ac, 40MHz

PER ≤ 10%)

- MCS=0 PER @ -87 dBm, typical

- MCS=1 PER @ -83 dBm, typical

- MCS=2 PER @ -81 dBm, typical

- MCS=3 PER @ -78 dBm, typical

- MCS=4 PER @ -75 dBm, typical

- MCS=5 PER @ -70dBm, typical

- MCS=6 PER @ -68 dBm, typical

- MCS=7 PER @ -66 dBm, typical

- MCS=8 PER @ -64 dBm, typical

- MCS=9 PER @ -63 dBm, typical

Receive Sensitivity

(11ac, 80MHz

PER ≤ 10%)

- MCS=0 PER @ -83 dBm, typical

- MCS=1 PER @ -80 dBm, typical

- MCS=2 PER @ -78 dBm, typical

- MCS=3 PER @ -74 dBm, typical

- MCS=4 PER @ -71 dBm, typical

- MCS=5 PER @ -69 dBm, typical

- MCS=6 PER @ -65 dBm, typical

- MCS=7 PER @ -63 dBm, typical

- MCS=8 PER @ -60 dBm, typical

- MCS=9 PER @ -59 dBm, typical

Feature

Description

General Specification

Bluetooth Standard

Bluetooth V4.1 of 1, 2 and 3 Mbps.

Host Interface

USB 1.1

Antenna Reference

Small antennas with 0~2 dBi peak gain

Frequency Band

2402 MHz ~ 2480 MHz

Number of Channels

79 channels

Modulation

FHSS, GFSK, DPSK, DQPSK

RF Specification

Min.

Typical.

Max.

Output Power (Class 1.5)

8 dBm

Sensitivity @ BER=0.1%

for GFSK (1Mbps)

-92 dBm

Sensitivity @ BER=0.01%

for π/4-DQPSK (2Mbps)

-92 dBm

Sensitivity @ BER=0.01%

for 8DPSK (3Mbps)

-85 dBm

Maximum Input Level

GFSK (1Mbps):-20dBm

π/4-DQPSK (2Mbps) :-20dBm

8DPSK (3Mbps) :-20dBm
