SR7236D/ QCA9531QCA9886

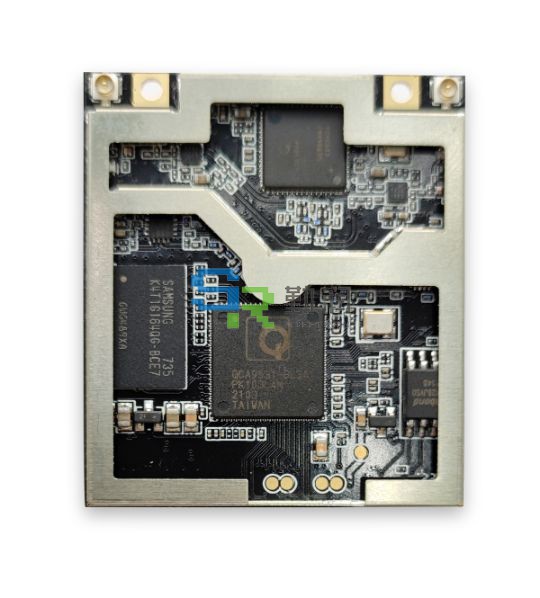

The module SR7236Dis a complete, small form factor 802.11 a/b/g/n/ac Wi-Fi Solution optimized forlow power, low-cost, and highly integrated AP and consumer electronic devices,the module integrates all Wi-Fi functionality in a package friendly to low-costPCB design.

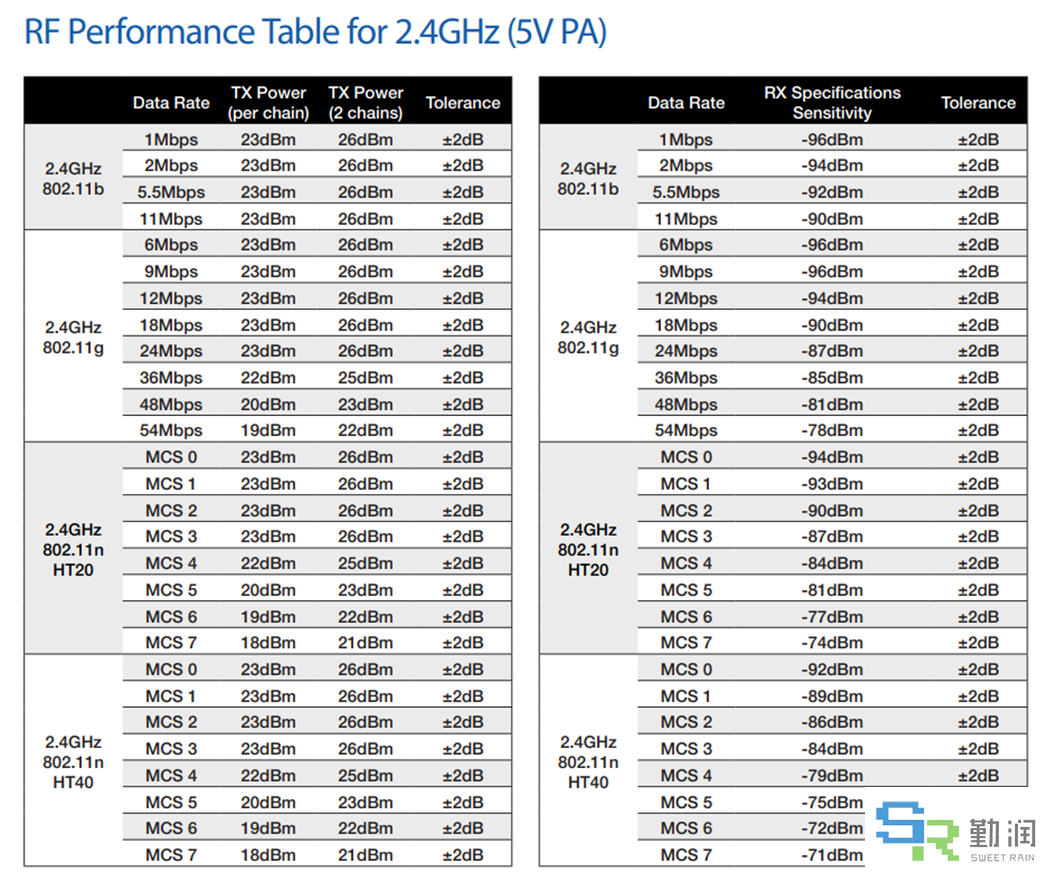

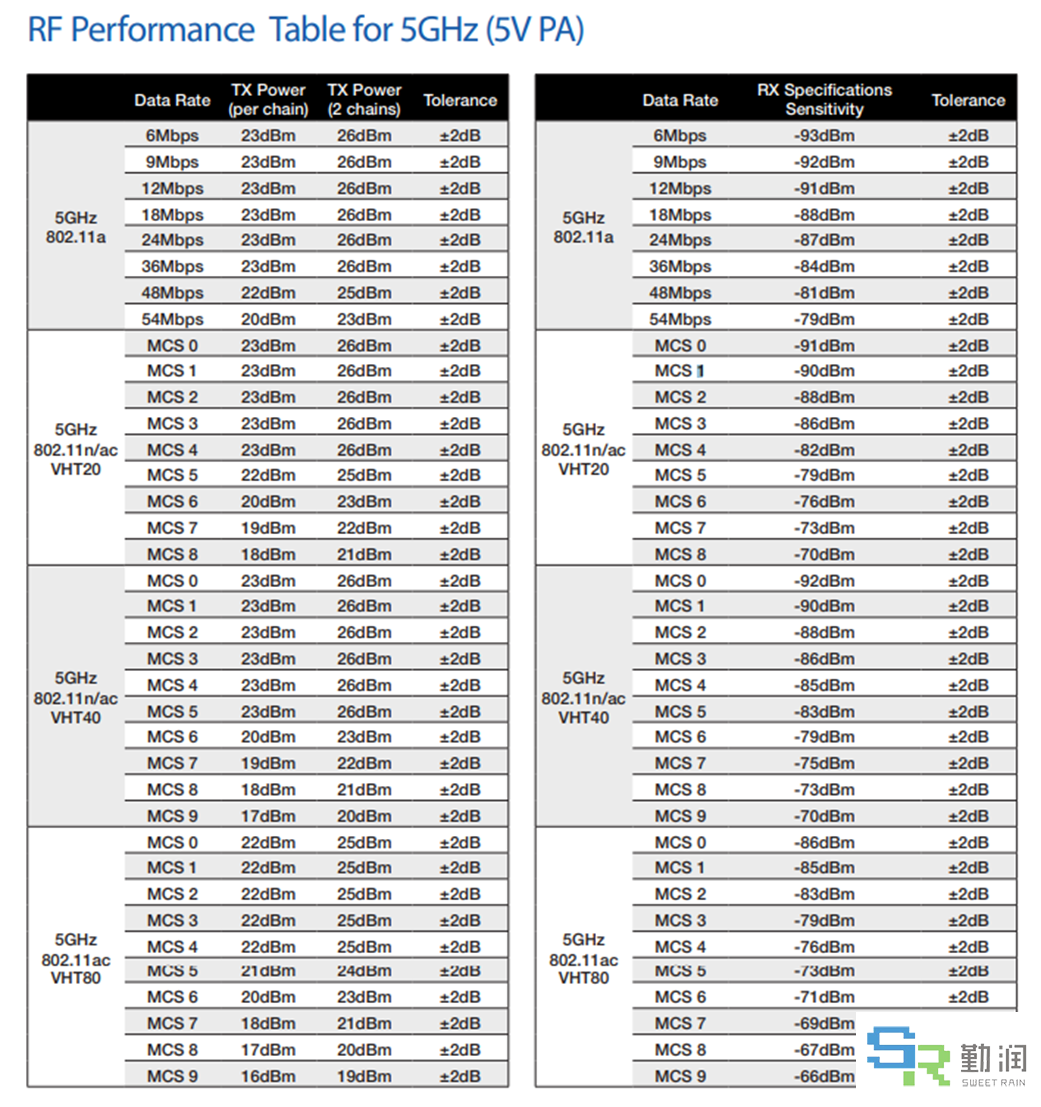

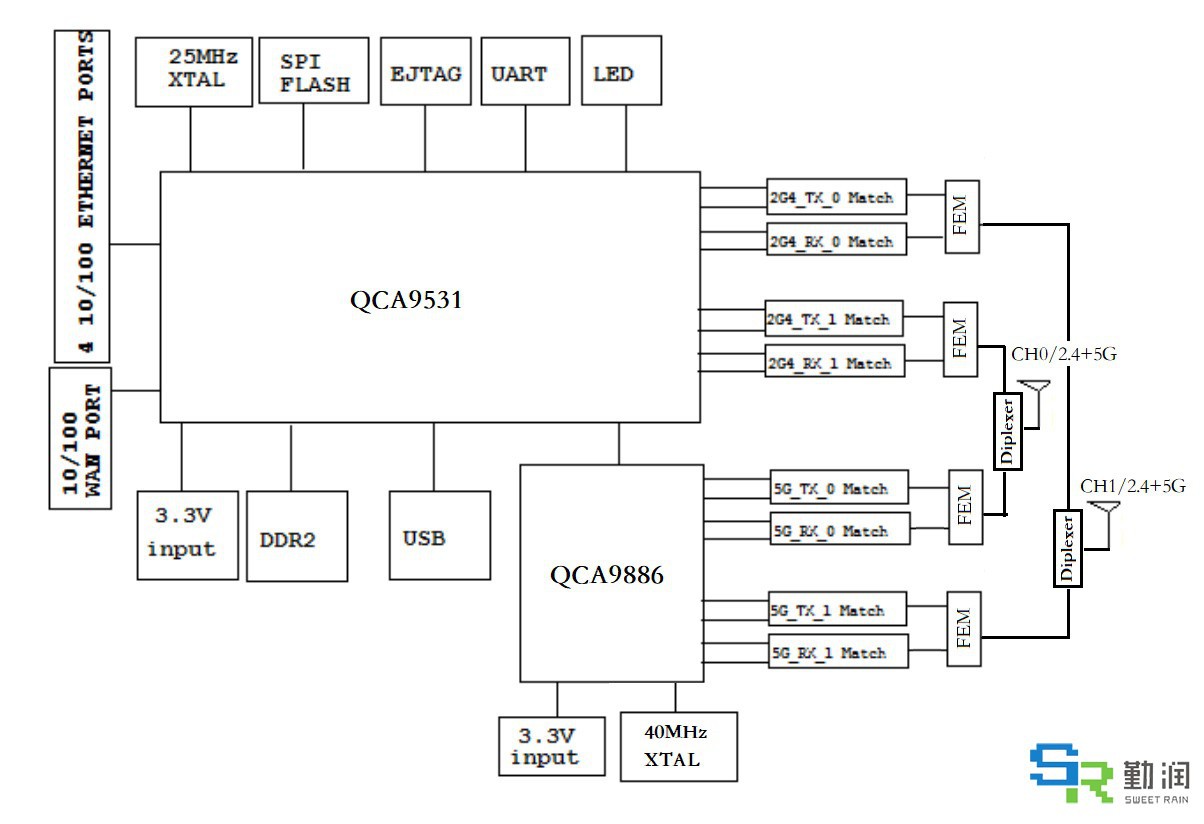

The modulebased on the chip QCA9531 and QCA9886 which integrates an 802.11n 2x2 MIMO MAC/BB/radio with external FEM. It supports 802.11 ac operations up to 1200 Mbps for 80MHz,and 802.11 b/g data rates.
