SR7131D

Line

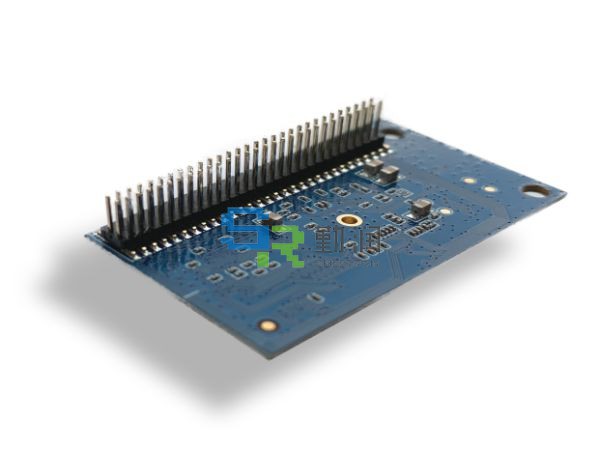

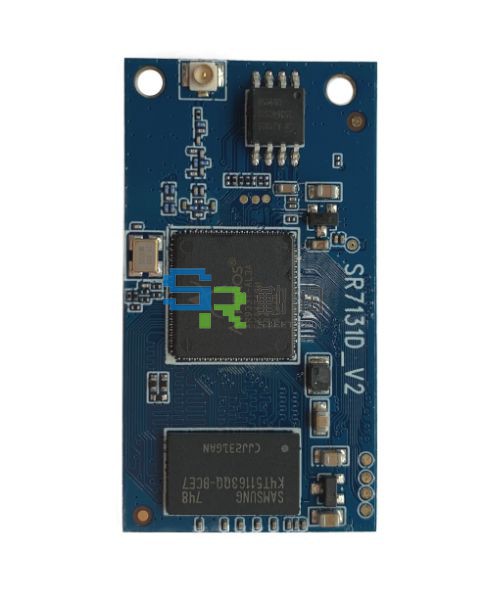

The module SR7131D is a complete, smallform factor 802.11 b/g/n Wi-Fi Solution optimized for low power, low-cost, andhighly integrated AP and consumer electronic devices, the module integrates allWi-Fi functionality in a package friendly to low-cost PCB design, requiringonly a few external 3.3V and connection to antenna.

The module based on the single chip QCA9331which integrates an 802.11n 1x1 MIMO MAC/BB/ radio with internal PA and LNA. Itsupports 802.11 n operations up to 72 Mbps for 20MHZ and 150 Mbps for 40MHZ, and802.11b/g data rates.

The module support AP modeand client mode at the same time and include mass service application softwareto reduce the research and design work of customer.
Order Now
DetailsParameters

1. Features

Ø  The MIPS R24k supports 64KByte I-Cache and32Kbyte D-Cache, targeted to operate at up to 400MHz.

Ø  DDR2 memory up to 512 Mb.

Ø  SPI NOR Flash memory up to 64 Mb.

Ø  4 LAN ports and 1 WAN port.

Ø  High-speed UART for console support.

Ø  USB 2.0 host/device mode support.

Ø  GPIO/LED support.

Ø  SPI support

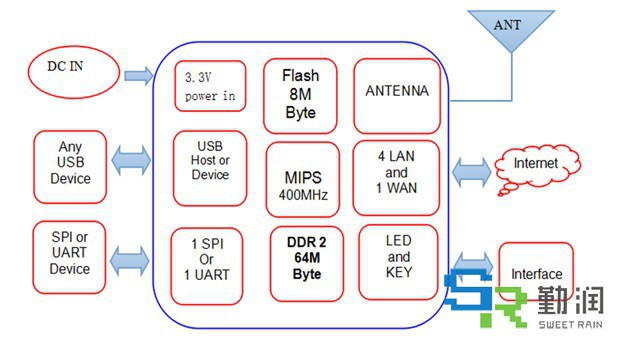

2. BlockDiagram

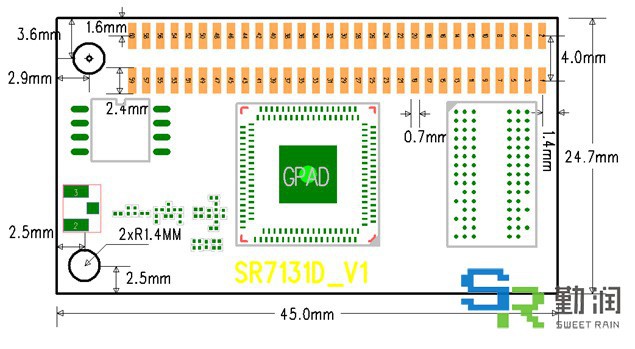

3. Physical Dimensions

RF Specification

4.1 IEEE 802.11b



Feature

Description

WLAN Standard

IEEE 802.11b, Wi-Fi Compliant

Number of Channels

CH1~CH13 (DSSS/CCK)

Output Power

802.11b@1Mbps: 18dBm ± 1.5dB@EVM ≤ -10dB

802.11b@6Mbps: 17dBm ± 1.5dB@EVM ≤ -10dB

802.11b@11Mbps: 17dBm ± 1.5dB@EVM ≤ -10dB

Receive Sensitivity

(PER ≤ 8%)

802.11b@1Mbps: PER @ -94dBm, Typical

802.11b@6Mbps: PER @ -90dBm, Typical

802.11b@11Mbps: PER @ -88dBm, Typical l



4.2 IEEE 802.11g



Feature

Description

WLAN Standard

IEEE 802.11g, Wi-Fi Compliant

Number of Channels

CH1~CH13 (OFDM)

Output Power

802.11g@6Mbps: 17dBm ± 1.5dB@EVM ≤ -5dB

802.11g@9Mbps: 17dBm ± 1.5dB@EVM ≤ -8dB

802.11g@12Mbps: 17dBm ± 1.5dB@EVM ≤ -10dB

802.11g@18Mbps: 17dBm ± 1.5dB@EVM ≤ -13dB

802.11g@24Mbps: 17dBm ± 1.5dB@EVM ≤ -16dB

802.11g@36Mbps: 16dBm ± 1.5dB@EVM ≤ -19dB

802.11g@48Mbps: 14dBm ± 1.5dB@EVM ≤ -22dB

802.11g@54Mbps: 14dBm ± 1.5dB@EVM ≤ -25dB

Receive Sensitivity

(PER ≤ 10%)

802.11g@6Mbps: PER @ -90dBm, Typical

802.11g@9Mbps: PER @ -89dBm, Typical

802.11g@12Mbps: PER @ -88dBm, Typical

802.11g@18Mbps: PER @ -87dBm, Typical

802.11g@24Mbps: PER @ -86dBm, Typical

802.11g@36Mbps: PER @ -83dBm, Typical

802.11g@48Mbps: PER @ -75dBm, Typical

802.11g@54Mbps: PER @ -72dBm, Typical



4.3 IEEE 802.11n (HT20)



Feature

Description

WLAN Standard

IEEE 802.11n HT20, Wi-Fi Compliant

Number of Channels

CH1~CH13 (OFDM)

Output Power

802.11n@MCS0: 16dBm ± 1.5dB@EVM ≤ -5dB

802.11n@MCS1: 16dBm ± 1.5dB@EVM ≤ -10dB

802.11n@MCS2: 16dBm ± 1.5dB@EVM ≤ -13dB

802.11n@MCS3: 16dBm ± 1.5dB@EVM ≤ -16dB

802.11n@MCS4: 15dBm ± 1.5dB@EVM ≤ -19dB

802.11n@MCS5: 13dBm ± 1.5dB@EVM ≤ -22dB

802.11n@MCS6: 13dBm ± 1.5dB@EVM ≤ -25dB

802.11n@MCS7: 13dBm ± 1.5dB@EVM ≤ -27dB

Receive Sensitivity

(PER ≤ 10%)

802.11n@MCS0: PER @ -90dBm, Typical

802.11n@MCS1: PER @ -88dBm, Typical

802.11n@MCS2: PER @ -86dBm, Typical

802.11n@MCS3: PER @ -82dBm, Typical

802.11n@MCS4: PER @ -79dBm, Typical

802.11n@MCS5: PER @ -75dBm, Typical

802.11n@MCS6: PER @ -73dBm, Typical

802.11n@MCS7: PER @ -70dBm, Typical



4.4 IEEE 802.11n (HT40)



Feature

Description

WLAN Standard

IEEE 802.11n HT40, Wi-Fi Compliant

Number of Channels

CH3~CH11 (OFDM)

Output Power

802.11n@MCS0: 15dBm ± 1.5dB@EVM ≤ -5dB

802.11n@MCS1: 15dBm ± 1.5dB@EVM ≤ -10dB

802.11n@MCS2: 15dBm ± 1.5dB@EVM ≤ -13dB

802.11n@MCS3: 15dBm ± 1.5dB@EVM ≤ -16dB

802.11n@MCS4: 14dBm ± 1.5dB@EVM ≤ -19dB

802.11n@MCS5: 13dBm ± 1.5dB@EVM ≤ -22dB

802.11n@MCS6: 13dBm ± 1.5dB@EVM ≤ -25dB

802.11n@MCS7: 12dBm ± 1.5dB@EVM ≤ -27dB

Receive Sensitivity

(PER ≤ 10%)

802.11n@MCS0: PER @ -88dBm, Typical

802.11n@MCS1: PER @ -85dBm, Typical

802.11n@MCS2: PER @ -83dBm, Typical

802.11n@MCS3: PER @ -80dBm, Typical

802.11n@MCS4: PER @ -75dBm, Typical

802.11n@MCS5: PER @ -72dBm, Typical

802.11n@MCS6: PER @ -70dBm, Typical

802.11n@MCS7: PER @ -68dBm, Typical
